Manufactured by: Specific Mechanical

Includes:

• 15 BBL Brewhouse system with:
  • Mash/Lauter and HLT combination vessel
  • Rake and Plow on Mash Lauder
  • Hot Liquor Tank
  • Kettle with mixer for decoction mash
  • 15 BBL Mash Kettle / Whirlpool combination
  • Side Manway
• 20 BBL Cold Liquor Tank

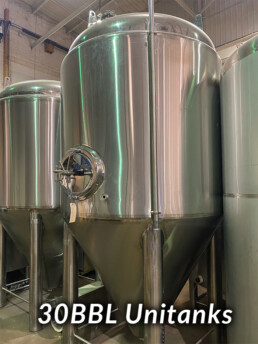

• (5) 30 BBL uni-tanks – Jacketed and Insulated with Side Manway
• Controls for brewhouse and uni-tanks
• (4) 30 BBL vertical serving tanks. Single Wall with Side Manway
• (6) 15 BBL horizontal lager tanks. Single Wall with Side Manway
• Engl grain mill and auger
• Assorted chemicals, hoses, fittings and parts attendant to brewing and serving equipment

Location: Nashville, Tennessee

System Number: 1062

Manufactured by Portland Kettle Works

Includes:

• 1 x PKW 5 BBL Hopmaster™ brewhouse
• 3 x PKW 5 BBL fermenters, jacketed and insulated
• 1 x PKW 5 BBL brite tank, jacketed and insulated
• 2 x Brewfab 5 BBL bbl unitanks, jacketed and insulated
• 3 x PKW 5 BBL lagering tanks

Location: Hialeah, Florida
Stock Number: 1056-2

Includes:

Manufactured by Portland Kettle Works

• • Complete 7 BBL Portland Kettle Works brewhouse
  • 1 ea. PKW 15 BBL Hot Liquor Tank
  • 1 ea. PKW 15 BBL Cold Liquor Tank
  • 2 ea. ABS 10 BBL Vertical Fermenters/span>
  • 2 ea. PKW 7 BBL Brite Tanks
  • G&D Chiller
  • Floor pump
  • Auxiliary Equipment (additional hoses, clamps, accessories, etc.)

  Location: Hummelstown PA

  Stock Number: 1050

Includes:

Manufactured by Portland Kettle Works

• • Complete 7 BBL Portland Kettle Works steam brewhouse
  • 5 ea. 7 BBL Vertical Fermenters, Jacketed and Insulated
  • 1 ea. 15 BBL Vertical Fermenters – NEW. Jacketed and Insulated
  • 2 ea. 15 BBL Vertical Fermenters, Jacketed and Insulated
  • 1 ea. 7 BBL Brite Tanks – NEW. Jacketed and Insulated
  • 1 ea. 15 BBL Brite Tanks – NEW. Jacketed and Insulated
  • 3 ea. 7 BBL Brite Tanks. Single Wall
  • 1 ea. 8 HL Calvados Beer Foeder
  • MPH 10 Columbia boiler (standard)
  • HLT/CLT Pump with VFD
  • Heat exchanger; Mixing manifold; Accessory pack; Aeration
  • 35 Gal Hopback grant ; Integrated grant
  • GD 5H Glycol Chiller
  • PKW Maltmaster Malt Mill
  • Flex Auger 20′ Auger allowance, plus 10′ Auger allowance
  • Grist Hydrator
  • Pump-On-Cart, 1 HP
  • Hydrovane 7.5 HP Air Compressor with Air Dryer, 230V, 150 psi
  • Auxiliary Equipment (additional hoses, clamps, accessories, etc.)

  Location: Dalton, MA

  Stock Number: 1044-1

Includes:

Manufactured by Criveller

• 1 x 20 BBL Steam Brewhouse
• 1 x 20 BBL Steam Mash Tun
• 1 x 20 BBL Steam Boil Kettle
• 1 x 40 BBL Steam Hot Liquor Tank
• 1 x 3 BBL Fermenter, Jacketed
• 3 x 20 BBL Fermenters, Jacketed
• 5 x 20 BBL Fermenters, Jacketed
• 1 x 20 BBL Brite Tank, Jacketed
• 2 x 40 BBL Horizontal Conditioning Tanks, jacketed
• 3 x 7 BBL Serving Tanks
• Note: All Tanks/Fermenters include 12 VAC Glycol Actuating Valves, Processing Valves, PRV’s, Spray Balls, etc.
• 1 x Portland Kettle Works Grain Mill
• 1 x Filter Rack W/6 Enpress Ct840 Filter Cartridges
• 1 x Transfer Pump
• 1 – 40 Plate Alpha Filters Plate Filter
• 1 x Columbia Mph 30 Boiler
• 1 x 10 Ton G&D Chiller
• 1 x Cipriani Heat Exchanger
• 1 x 40′ Stainless Steel Pipe For Brew House Boil Stack
• 1 Lot: Misc. Valves, Gaskets, Clamps, Sight Glasses, 15 Gallon Brinks, Hoses, Lab Supplies.
• 500 x 1/6 BBL Kegs

Location: New York

Stock Number: 1040

Includes:

• Manufactured by Metalcraft
• Turnkey 20BBL 3 Vessel Brewhouse
• 20BBL Mash/Lauter Tun
• 20BBL Kettle
• 30BBL Whirlpool
• 1 x 40BBL Hot Liquor Tank
• 2 x 20BBL Fermentation Vessels
• 1 x 20BBL Brite Tank
• Heat Exchanger
• Columbia Boiler
• Inline 1BBL Hop Filter
• 2 Manifolds with Brewhouse Catwalk
• Control Panel
• Additional hoses, clamps, accessories, and more

Location: Hapeville, Georgia

Stock Number: 1028

Includes:

• Manufactured by Forgeworks. Factory refurbished by Portland Kettle Works
• 10BBL Combo Mash Tun/Hot Liquor Tank – 100″ Tall x 58″ Wide
• 10BBL Brew Kettle – 96″ Tall x 60″ Wide
• 10BBL Cold Liquor Tank – 98″ Tall x 56″ Wide
• Heat Exchanger
• Catwalk – 66” tall x 55” long x 48” wide
• 1 HP pump
• Misc. Controls

Location: Portland, Oregon

Stock No: 1022

Includes:

Manufactured by Marks

10 BBL Insulated Mash/Lauter Tun (MLT)

• All interior welds blended
• Top mounted glass manway with etched brewery logo
• 4” Grist hydrator
• Rake-style mixer with top mounted motor (Nord gearbox) and manual flip-down grain-out plow
• Front rectangular manway with removable grain-out chute
• V-wire, removable, false bottom screen
• Dual sided manometer
• Multi-point wort drain assembly
• Sparging system with stainless steel spray jets
• Removable vorlauf inlet tube
• Sparging system with stainless steel spray jets
• 360° Rotating CIP spray ball(s)
• 15 BBL Grist Case

10 BBL Direct Fire Kettle/Whirlpool (DFKWP)

• Heat is provided by an “on/off” natural gas burner with exhaust pipe
• Insulated “firebox” built around tank bottom and a portion of the side wall with baffling to optimize heat flow
• All interior welds blended
• Insulated shell with #4 polished stainless cladding
• Top mounted glass manway with etched brewery logo
• Sloped bottom design for maximum wort drainage
• 2″ drain sump with 4” trub drain
• Removable drain dam
• Tangential whirlpool inlet
• Temperature sensor well
• Steam vent with condensation ring/drain
• 360° Rotating CIP spray ball(s)

30 BBL Electric Heated Hot Liquor Tank (EHLT)

• Heat is provided by three 18kW immersion heaters
• All interior welds polished
• 316/316L SS on all wetted surfaces
• Insulated shell with #4 polished stainless cladding
• Top mounted manway
• Removable CIP assembly with 360° rotating CIP spray ball
• Drain extension tube
• Fittings for pump inlet, city water fill, heat exchanger return, tank recirculation
• Shell mounted thermowell
• Sight tube assembly with volume/calibration strips

Other Equipment

• Constructed of 304 Stainless Steel
• Stainless steel hand rail surrounding perimeter of work area with toe kick plate
• Brewhouse Platform (BPF)
• Fiberglass decking material with non-slip top
• Integrated stair or ladder assembly
• Adjustable foot pads for platform leveling
• UL Listed Push Button Certified Control System
• (1) Magflow meter at water mixing station (1) Boil over sensor (DFKWP)
• (2) Digital temperature controllers (DFKWP, HLT) (3) Variable speed controllers for pumps (MLT, DFKWP, EHLT)
• (1) Variable frequency drives to control speed and direction of mixer (MLT) (3) RTD temperature sensors (MLT, DFKWP, EHLT)
• Brewhouse Piping, Clamps, Valves, Fittings
• All required clamps and gaskets to connect MLT, DFWP, EHLT
• Hot and cold water mixing station
• (3) 2HP centrifugal wash down rated pumps (MLT, DFWP, EHLT)
• Dual stage stainless steel plate heat exchanger sized for 30 min knockout
• Wort aeration assembly with sintered stone, sight glass, thermometer

Pro Chiller Glycol Chiller
Model PM112F3R4100-A-VC 230/3/60 R404A 12 HP

3-Head Keg Washer
Cedarstone 3-head keg washer and compressor.

Location: Coupville, Washington

Stock Number: 1020
